Hydraulic Container Lift Jack
A four-leg hydraulic lifting set for containers, rated 8 t per leg with a 1,700 mm lift height. The legs lift at the container corners, so no crane or reach stacker is needed.
Models: HCCL8.0XW-4 / HCCL8.0X-4
- lifting capacity
- 8 t per leg (32 t per set of four)
- max lift height
- 1,700 mm
- lifting speed
- 21 mm/s
- motor power
- 2 kW (24 V) / 2.2 kW (380 V)
- supply voltage
- 24 V or 380 V
- control voltage
- 24 V
Full specifications by model
Every row below is one orderable model. Link straight to a model with its anchor — for example #hccl8-0xw-4.
| Parameter | HCCL8.0XW-4 | HCCL8.0X-4 |
|---|---|---|
| Lifting capacity per leg | 8 t | 8 t |
| Lifting height | 1,700 mm | 1,700 mm |
| Lifting speed | 21 mm/s | 21 mm/s |
| Motor power | 2 kW | 2.2 kW |
| Supply voltage | 24 V | 380 V |
| Control voltage | 24 V | 24 V |
| Dimensions L × W × H | 1,140 × 1,120 × 2,575 mm | 1,140 × 1,120 × 2,575 mm |
| Weight per leg | 800 kg | 760 kg |
Dimensions are in millimetres and are taken from the current drawing for each model. Before ordering, ask us for the drawing of the exact model so the mounting dimensions are checked against your frame — the table is for selection, the drawing is what we build to.
Where this cylinder is used
Selection is driven by the duty cycle, not the catalogue. Tell us the load, the stroke you need and how many cycles per day — those three numbers decide the series and often the port configuration.
- container-loading
- container-unloading
- port-and-yard
- warehouse
Questions buyers ask before ordering
- How many lift jacks are needed to lift one container?
- Four. Each jack is rated 8 t and lifts at one corner, so a set of four carries 32 t — which matches the maximum loaded container weight this set is specified for.
- What is the difference between HCCL8.0XW-4 and HCCL8.0X-4?
- Supply voltage and motor. The XW-4 runs on 24 V with a 2 kW motor and weighs 800 kg per leg; the X-4 runs on 380 V with a 2.2 kW motor and weighs 760 kg per leg. Lifting capacity, height and speed are identical.
- How high can the set lift a container?
- 1,700 mm of lifting height at 21 mm/s. That is enough clearance to drive a trailer or a yard vehicle under the container, which is the usual reason for lifting it in the first place.
- How much does one leg weigh and how is it moved?

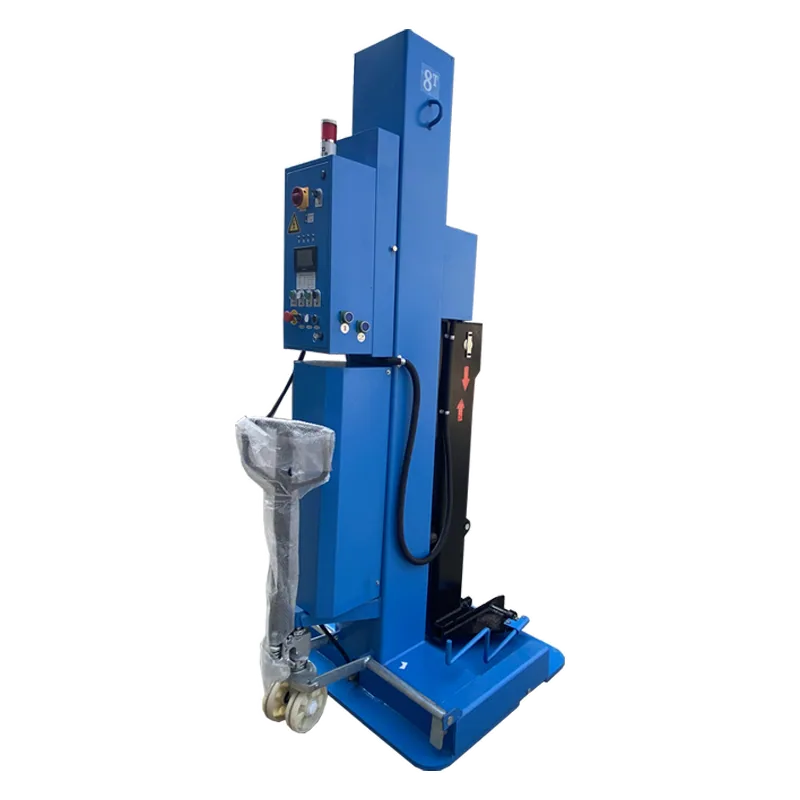

- Between 760 and 800 kg depending on the model. Each leg sits on castors with a lifting handle, so it can be repositioned on a flat concrete or asphalt surface without a forklift.
Need this sized for your equipment?
Send the load, stroke and mounting envelope. We will come back with the model that fits and the drawing for it.
