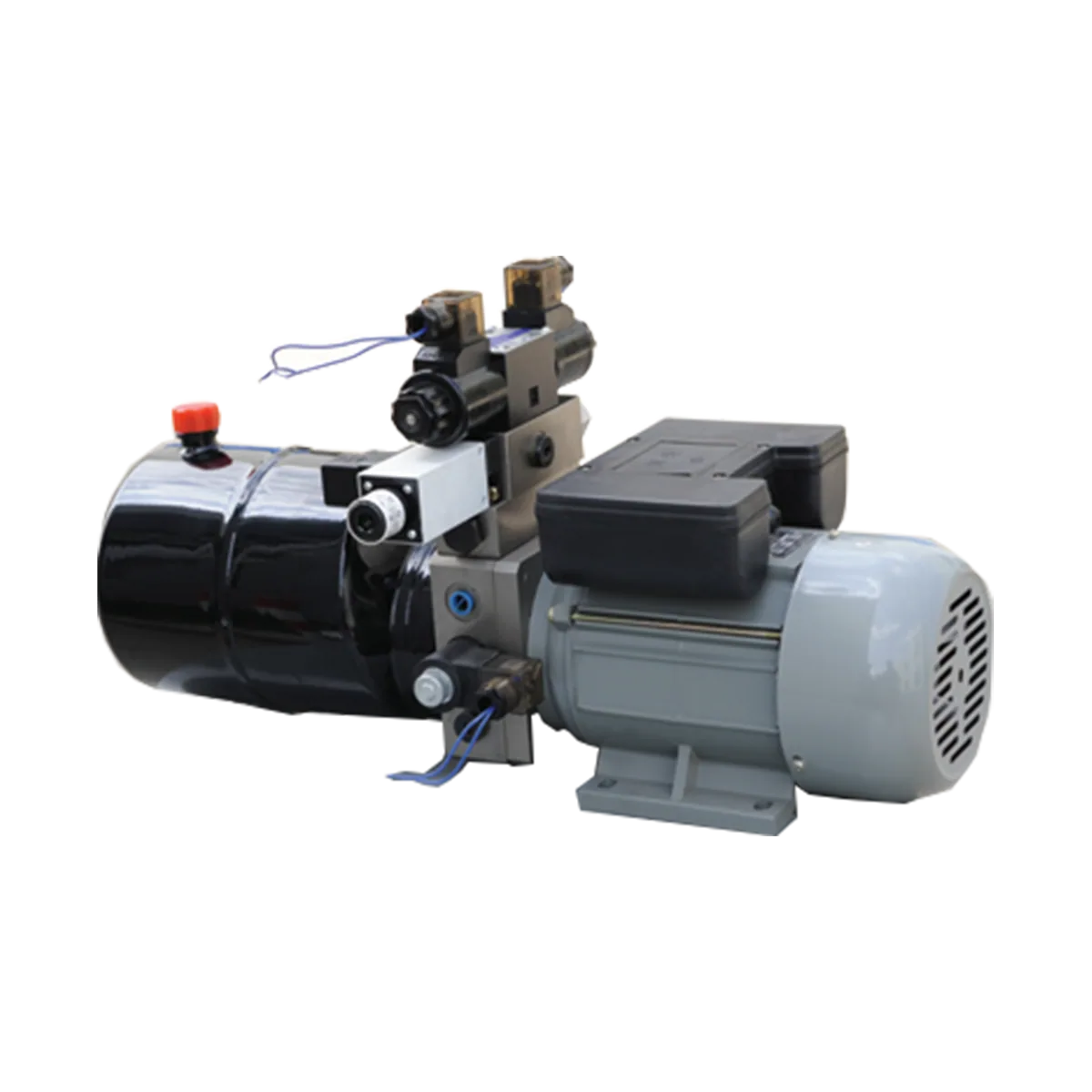

DC Hydraulic Power Unit
Battery-driven hydraulic power unit with a 12 V or 24 V DC motor, gear pump from 0.75 to 8 cc/rev, working pressure up to 250 bar and reservoirs from 3 to 16 litres.
Models: 12 V / 24 V, 3–16 L reservoirs
- motor
- 12 V or 24 V DC
- pump displacement
- 0.75 – 8 cc/rev
- working pressure
- 50 – 250 bar (set at 180 bar)
- flow
- 3 – 25 L/min
- reservoir
- 3 – 16 L
- ports
- BSPP 1/4" or BSPP 3/8"
Full specifications by model
The unit is built to the range below. Values are the factory settings; alternatives are confirmed at quotation.
| Parameter | Value |
|---|---|
| Oil port thread | BSPP1/4” or BSPP3/8” |
| Remote control | Cable or wireless remote |
| Motor | DC12V /DC24V |
| Gear Pump | From 0.75cc up to 8cc/r |
| Voltage | DC12V or DC24V |
| Working Pressure | 50-250bar,setting @180bar |
| Tank/Reservoir | From 3L up to 16L |
| Flow L/M | From 3LPM to 25LPM |
| Mounting | Horizontal/ Vertical |
Dimensions are in millimetres and are taken from the current drawing for each model. Before ordering, ask us for the drawing of the exact model so the mounting dimensions are checked against your frame — the table is for selection, the drawing is what we build to.
Where this cylinder is used
Selection is driven by the duty cycle, not the catalogue. Tell us the load, the stroke you need and how many cycles per day — those three numbers decide the series and often the port configuration.
- liftgates
- tipper-trailers
- tail-lifts
- mobile-equipment
Questions buyers ask before ordering
- What pressure does the unit come set to?
- 180 bar as standard, within a 50–250 bar working range. The relief valve is set at assembly, so tell us the pressure your circuit actually needs rather than adjusting it on site.
- Which reservoir size should I choose?
- Between 3 and 16 litres. A common starting point is three times the pump flow per minute for intermittent duty, so a 6 L/min system lands around 18 L if it runs continuously — for short cycles a smaller tank is usually enough.
- Can it run from a 24 V truck electrical system?
- Yes. The motor is available in 12 V or 24 V DC, which is the reason this unit is used on trailers and vehicle-mounted equipment rather than needing a generator.
- What control options are available?
- Cable remote or wireless remote, with BSPP 1/4" or BSPP 3/8" ports. Mounting can be horizontal or vertical, which matters when the unit has to fit behind a body panel.
Need this sized for your equipment?
Send the load, stroke and mounting envelope. We will come back with the model that fits and the drawing for it.
